Description
Highlights of the Milwaukee M12 FUEL INSIDER Extended Reach Box Ratchet

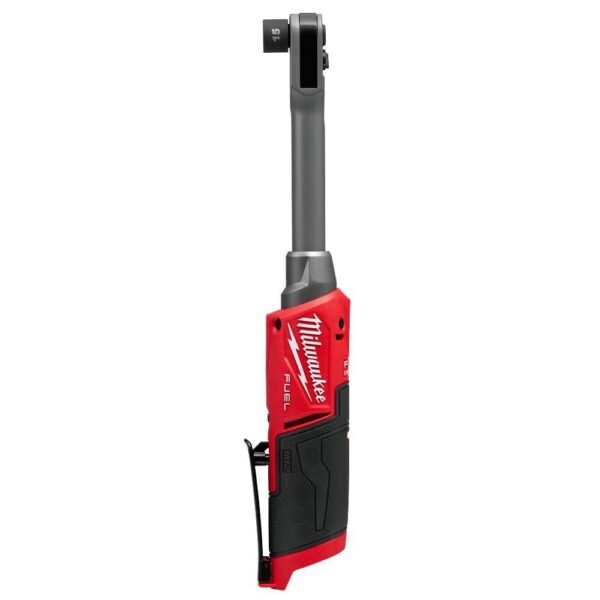

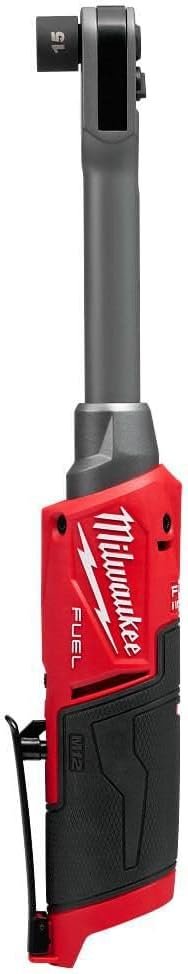

The Milwaukee M12 FUEL INSIDER Extended Reach Box Ratchet (Bare Tool) exists for one problem: fasteners in engine bays and boxed assemblies that a conventional ratchet head cannot physically enter. The specification behind that is an ultra-low profile head listed as over ¾” shorter than standard ratchets, which is what allows the socket and adapter to seat directly in the tool instead of hanging off an extension. Milwaukee pairs that geometry with 60 ft-lbs of maximum torque and 350 RPM, an unusual combination in a head this shallow, since shallow heads normally cost output. For mechanics working blind and close, that pairing is the reason to look at this tool over a conventional ratchet.
- Ultra-compact head for deep reach
- High torque and fast RPM for tough jobs
- Direct socket insertion for ease of use
Versatility Across Fastener Sizes

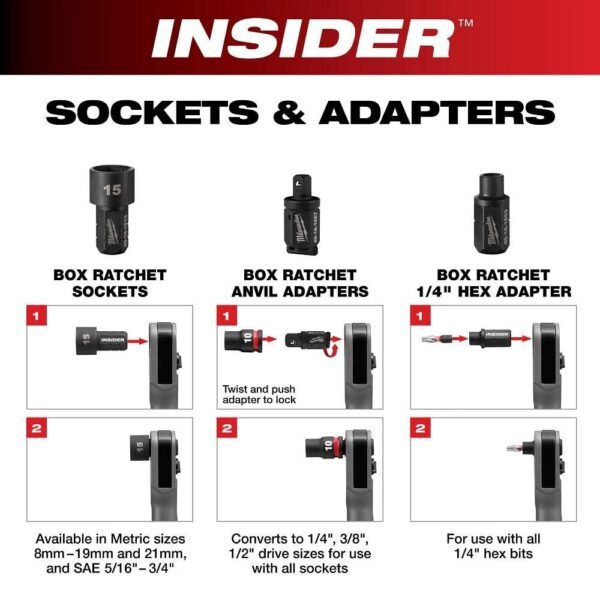

The INSIDER system is built around a 13-piece metric INSIDER Box Ratchet Socket set covering 8 to 21mm, plus three adapters: a ¼” hex bit, a ¼” anvil, and a 3/8″ anvil. That range covers most fastener work on modern vehicles without a second tool on the bench. The pass-through 6-point sockets up to 15mm (9/16″) are the detail that matters on threaded rod, since a closed socket bottoms out and a pass-through does not. The head can also be turned by hand with the motor idle, so the tool doubles as a conventional ratchet when the last quarter turn needs feel rather than power.
Performance and Handling
The POWERSTATE brushless motor is the part that holds torque steady as the pack drains, which is the practical difference brushless makes on fasteners that fight back. At 350 RPM the tool runs threads down quickly by ratchet standards without becoming hard to stop cleanly. The brushed finish gives the barrel some texture, which matters more than appearance once hands are oily. Sold as a bare tool, it draws on the M12 platform and its shared battery pool, which is the strongest argument for buying it if those packs are already in the van. Owners weighing the same access idea in a conventional 3/8″ format should compare the M12 FUEL 2560-20 extended reach ratchet, which solves reach with a longer body rather than a shorter head.
Drawbacks to Consider
There is a plain conflict in the listing data that buyers need to resolve before ordering. The tool is described as a bare tool with no battery or charger, yet the same source describes a 13-piece INSIDER socket set and three adapters as included. Those cannot both be true of a single order, and the INSIDER sockets are a proprietary format the tool needs to work at all. Check the exact part number and its box contents before buying, since the 3050-21 kit version of this ratchet is the variant that ships with the extras. Beyond that: there is no built-in light, which is a real gap in a tool designed for dark cavities, and the open-end head style trades some grip security for its access advantage.
- No built-in LED light for dark areas
- Battery and charger sold separately on the bare tool
- Open-end head may reduce grip on some fasteners
Cost-Effectiveness and Value Assessment
The price makes sense on the strength of the head geometry, not the torque figure alone. Plenty of ratchets reach 60 ft-lbs; very few do it in a head this shallow with sockets that insert directly. For a professional who loses billable time to access problems, that is the whole return on the purchase. M12 platform membership extends the value for existing owners and adds to it for newcomers. Casual users almost certainly do not need this specific solution, and the broader field of cordless ratchet wrenches we have reviewed covers cheaper answers to ordinary fastening.
Product Comparisons
Against conventional cordless ratchets from DEWALT and Bosch, the Milwaukee’s separation is structural rather than a matter of output. Standard ratchet heads are deeper, so reaching a recessed fastener means adding an extension, and an extension puts the tool body further from the work and reintroduces the clearance problem. The DEWALT DCF513B cordless ratchet is representative of that mainstream approach and is the stronger general purpose choice. Where the competition genuinely leads is lighting, since integrated LEDs are common at this price and absent here.
Alternative Offerings
Buyers who do not need the INSIDER geometry have better value elsewhere. A conventional 3/8″ cordless ratchet covers most vehicle work at lower cost and with a wider socket choice, since it accepts any standard socket instead of a proprietary set. On the smaller end, the M12 1/4″ drive ratchet is the lighter answer for interior trim and small fasteners. The INSIDER earns its place only where the fastener sits deep in a cavity that a standard head cannot enter, which is a narrow but genuinely underserved case.
User-Friendly Features and Handling
Weight distribution is balanced enough that the tool does not want to twist out of the hand at the end of a long reach, and the brushed finish contributes some tactile grip. Manual operation with the motor disengaged is a genuinely useful feature on delicate fasteners where powered torque is too blunt. Socket and adapter changes are quick because of the direct insertion design, with no extension to fumble. The build reads as durable, and the tool is compact enough to store without a dedicated case.
Downsides and Areas for Improvement
The lack of integrated lighting is the clearest omission on a tool sold specifically for dark, confined work. The open-end head is less secure on fasteners that are already worn or rounded, which is exactly the condition of the bolts that most often need a powered ratchet. Battery and charger costs land on newcomers to the platform. And the socket sizes are all metric, so anyone regularly working imperial fasteners is looking at a coverage gap that the proprietary format makes harder to fill from a generic socket drawer.
- Could benefit from built-in LED lighting
- Open-end head less secure on damaged fasteners
- Batteries sold separately increase upfront cost
- Metric sockets only, no imperial sizes
Across the work it is aimed at, from seized bolts deep in an engine bay to routine assembly, this ratchet is strongest exactly where standard tools cannot fit and unnecessary everywhere else. The low profile head, the 60 ft-lbs and 350 RPM pairing, and M12 compatibility make it a specialist purchase that pays off for professionals and overshoots most household fixes.
