Description
Highlights of the NuMax Pneumatic Framing Nailer

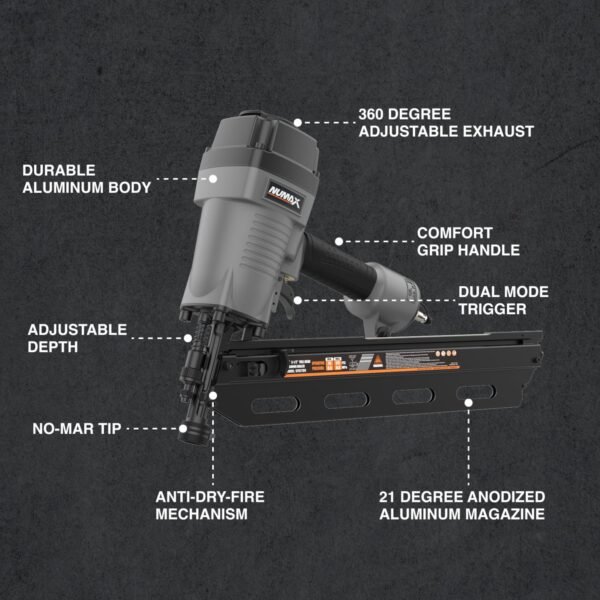

The NuMax SFR2190 Pneumatic 21 Degree 3-1/2″ Framing Nailer Tool Only is specified for heavy-duty work: framing, subfloor installation, roof decking, and pallet or shipping crate assembly. Durability is the headline claim, centered on a heat-treated steel drive blade built to survive repeated hard driving. The anti-dry-fire mechanism stops the tool from cycling once the magazine runs out, which protects both the driver and the workpiece. The dual mode trigger is the feature that shapes daily use most: single sequential firing for placement accuracy, bump firing for speed, selectable on the tool.
- Durable steel drive blade resists damage
- Anti-dry-fire feature supports safety and tool life
- Versatile dual mode trigger for precision or speed
Comfort and Usability Features
The comfort grip handle is the manufacturer’s answer to hand fatigue over a long shift, and on a tool this size that specification carries real weight. The tool-free depth adjustment wheel allows nail penetration to be dialed in without reaching for a wrench, which keeps a run moving between material changes. The no mar safety tip is a small part with an outsized role: it keeps the nose from denting or scratching visible surfaces, which matters on fencing and decking where the finish is on show.
The exhaust port adjusts through 360 degrees, so the air blast can be pointed away from the operator’s face or away from delicate stock. That is a detail aimed squarely at real-world use rather than at the spec sheet, and it is one of the differences worth comparing across the framing nailers we cover.
Drawbacks That Might Matter
The tool is not without flaws. The listed weight of about 8.5 pounds is significant, particularly overhead or across a full day. The grip helps, but the mass still asks something of the operator. The size and bulk make it awkward in confined framing, so it is a poor match for intricate or close-quarter work.
The dual trigger system is versatile, but bump firing carries a learning curve and a higher misfire risk for anyone new to it. The tool ships without nails or an air compressor, so a shop starting from scratch faces a second and third purchase before the nailer does anything. The exhaust direction adjustment, useful as it is, is a manual part that has to be reset as working position changes.
- Heavier than some other framing nailers
- Bulkier design limits use in tight spaces
- Bump firing mode requires a learning curve
Price to Quality Ratio
Weighed against its feature set and construction, this pneumatic framing nailer presents a solid value proposition for DIY users and professional contractors alike. A one-piece hardened steel blade and an anti-dry-fire mechanism are features that typically appear further up the price ladder, yet the tool holds a competitive position. NuMax lists a 1-year limited warranty and a 30-day wearable parts warranty, which sets clear expectations about coverage.
Against budget framing nailers, this model is specified more heavily and reads as the sturdier option, which supports the higher price. For casual or infrequent projects, though, the weight and size count against it next to lighter cordless tools such as the cordless DEWALT DCN920B framing nailer.
Alternative Offerings
Compared with familiar rivals such as the Bostitch F21PL and the Hitachi NR90AES1, the NuMax leads on durability and safety features, particularly the anti-dry-fire mechanism and tool-free depth adjustment that some competitors either omit or implement less cleanly. It gives ground on weight to the Hitachi, which is more compact and lighter but does not carry the same rugged steel drive blade.
The Bostitch uses a comparable dual trigger arrangement while drawing more complaints about comfort over long sessions. On price the NuMax sits mid-range: above entry-level tools, below premium brands, with construction that argues for the position. Where robust build and safety features come first, it makes sense. Where weight and maneuverability rule, the 7.3-pound PORTER-CABLE FC350B is the more comfortable pick.

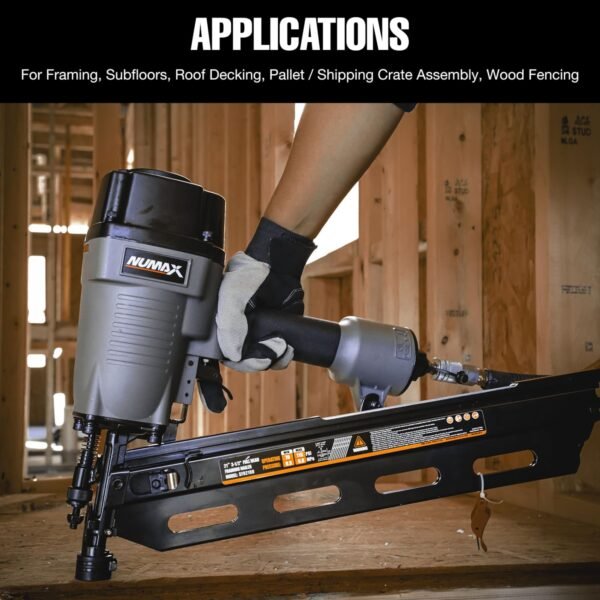

Performance on Various Projects

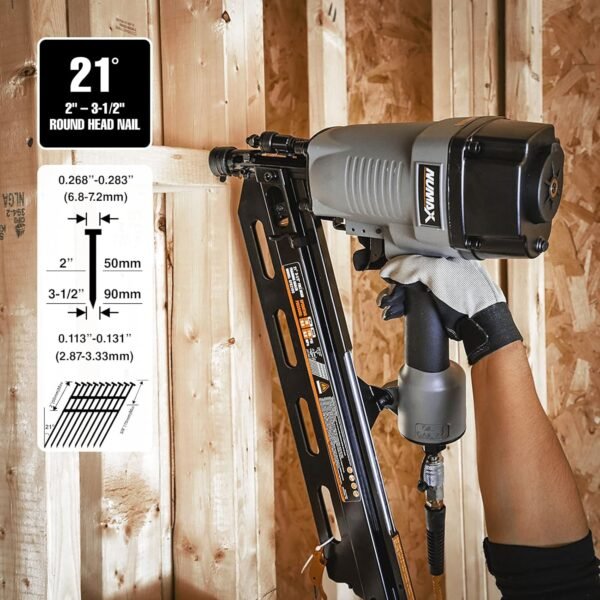

Across framing, subfloor installation, and crate or pallet assembly, the tool is rated for consistent duty. It accepts 21-degree plastic collated full round head framing nails from 2″ to 3-1/2″, which covers standard structural fastening. The adjustable depth control is what allows accurate countersinking, the setting that prevents split wood on one end and proud nail heads on the other.
On roof decking, the 360-degree adjustable exhaust earns its place by keeping blown debris away from the operator’s face. The no mar tip does the same job for the material surface. The recurring chore is reorienting that exhaust as position changes, which is the cost of the adjustability. Crews shooting shingles as well as decking will want a dedicated tool such as the RIDGID 15 degree coil roofing nailer on the same compressor.
Downsides That Might Affect Use
Being pneumatic, the tool needs a compatible air compressor, which raises setup cost and limits where it can go. On a site with no compressor or no power nearby, it loses ground quickly to cordless framing nailers.
The weight and bulk slow work in confined spaces and on long overhead stretches. The dual mode trigger, useful as it is, takes familiarity before bump firing becomes reliable rather than a source of stray fasteners.
- Requires an air compressor, limiting portability
- Heavier and bulkier than cordless alternatives
- Bump firing mode has a learning curve
Positive Features That Impress
Taken together, the specification list makes a coherent case built on durability, safety, and comfort. The anti-dry-fire mechanism is the standout, preventing dry cycling that wears the driver. The tool-free depth adjust makes material changes quick, and the 360-degree exhaust adjustment is a genuine ergonomic feature rather than a marketing line. The comfort grip handle addresses the fatigue that comes with an 8.5-pound tool.
- Robust build with hardened steel blade
- Safety-focused features like anti-dry-fire and no mar tip
- Ergonomic design with comfort grip and exhaust control
For hangers working metal connectors alongside stick framing, the BOSTITCH MCN150 metal connector nailer covers the fastening this tool is not designed for, and the two share an air supply without conflict.
On its published specifications this framing nailer earns a place as a serious tool for professional and advanced DIY use, pairing power, precision, and safety features that are uncommon at its price level.
