Published Specifications of the Nightstick TWM-30

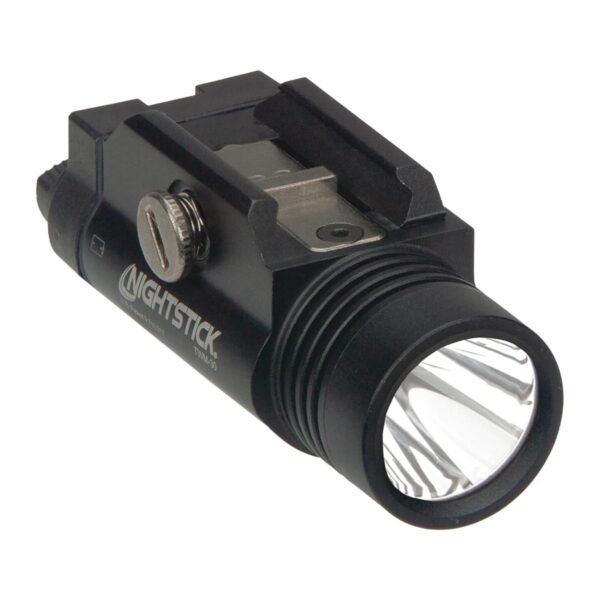

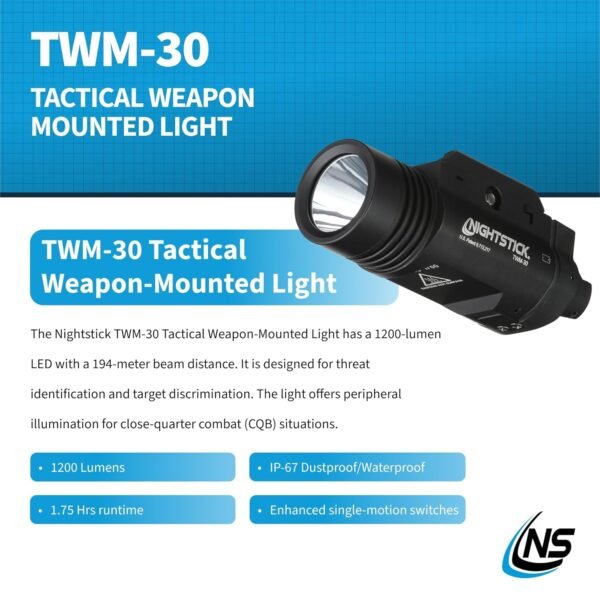

The Nightstick TWM-30 Tactical Mounted Light, Black High Lumen is specified at 1200 lumens with a published beam distance of 194 meters, a pairing that indicates a focused optic rather than a flood pattern: reaching that distance at that output means a defined centre spot with a spill halo around it rather than an even wash. Control is by single motion ambidextrous switches supporting momentary and constant on activation from either side, which is the specification that matters most on a weapon mounted light, since the switch has to fall under whichever hand is already there. Programmable strobe and battery safe modes are also published, selected through switch combinations rather than by cycling the main output.
Worth noting on the modes: the listing states that the battery safe setting extends runtime but gives no lumen figure and no runtime figure for it, so the size of that extension is not published anywhere in the specification. Check it on the manufacturer sheet if the reduced output level is part of the reason for buying.
- 1200 lumen rated output with a 194 meter published beam distance
- Ambidextrous single motion switches for momentary and constant activation

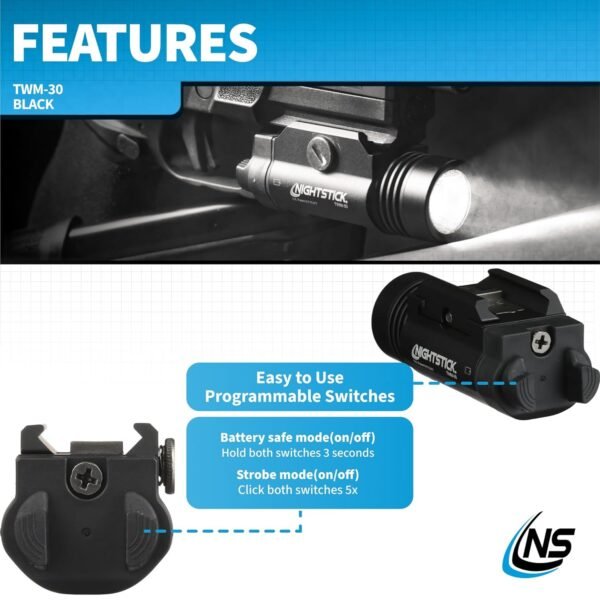

- Programmable strobe and battery safe modes reached by switch combination
Build Quality and Design Features

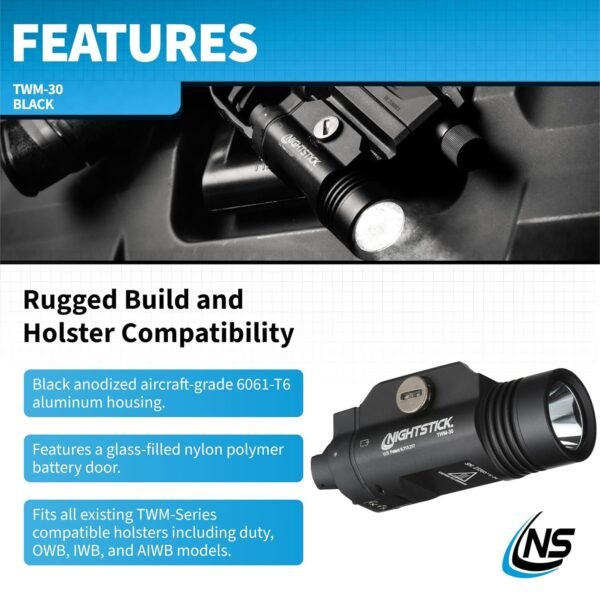

The housing is aircraft grade 6061-T6 aluminum in a black anodized finish, with a glass filled nylon polymer battery door rather than a metal one. That mix is deliberate: aluminum takes the impact and the heat, while a polymer door absorbs the flexing that repeated opening puts into the part most often handled. Sealing is published as IPX7, which covers immersion in 1 meter of water for 30 minutes and carries no dust digit, so it is an immersion figure rather than an all round ingress rating.

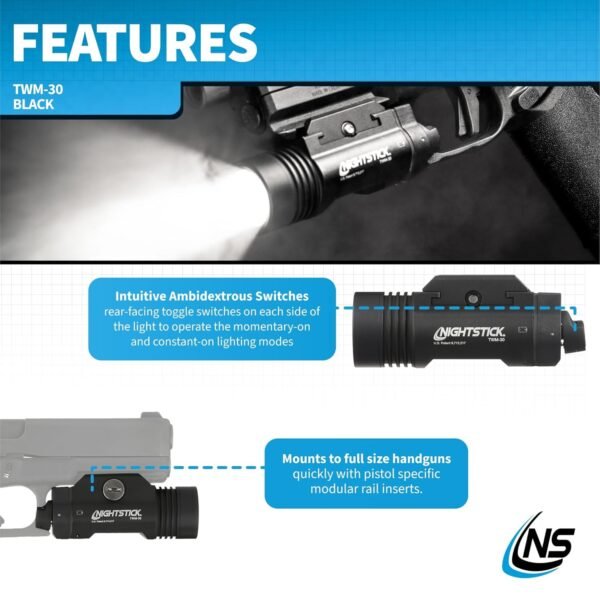

Mounting uses three cross rail inserts and mounting screws supplied in the box, covering the rail variations found on different frames, the same fitment problem the Nightstick TCM-5B compact handgun light addresses in a smaller body, and the light is specified to fit TWM series holsters. Listed size is around 3.5 by 1.5 inches at just over 5 ounces, which is the weight range where a pistol mounted light starts to change how the host balances forward of the trigger guard.
Battery Format and Runtime
Power comes from two CR123 lithium cells, included, with a published runtime of about 1.75 hours at constant high output. That is longer than several competitors manage at this output level and still short in absolute terms, which is the standard trade for primary lithium cells: low weight and long shelf life against an ongoing battery bill. The listing states the light is not compatible with rechargeable batteries, and that restriction is the one to take seriously, since rechargeable cells in the CR123 form factor run at a higher voltage than the primaries the circuit is specified for.
The battery door is the practical detail here. A door that opens without tools is what makes a primary cell light workable in the field, and it is also the seal that has to close correctly for the IPX7 figure to mean anything.
Limitations to Weigh
Runtime is the first constraint: 1.75 hours at high output means spare cells for any extended use. The lack of rechargeable support rules out the format that many buyers now default to, and it is a hard restriction rather than a preference. The mode combinations that reach strobe and battery safe require pressing both switches together, which is more to remember than a single button cycle, and it is the specification most often mentioned as a learning curve. Pricing sits above several lights that publish similar output figures.
- 1.75 hours of rated runtime at constant high output
- No rechargeable cell support in the published specification
- Mode selection by switch combination rather than a single control
Price Relative to Specification
Judged on the published figures, the TWM-30 is priced between the budget and premium ends of the weapon light bracket, and the case for it rests on the switch layout, the aluminum housing and the IPX7 rating rather than on the lumen figure alone. The limited lifetime warranty is part of that calculation, since it is a published term rather than a subjective quality judgement. Buyers who need a rechargeable platform will be looking outside this model regardless of price.
Comparison With Rival Weapon Lights
Against direct competitors such as the Streamlight TLR-1 and the SureFire X300 family, the TWM-30 sits between them on both price and specification. The SureFire X300U-B at a rated 1000 lumens publishes a shorter runtime at full output and a similar mounting standard, and carries the higher price that goes with its anodizing and materials specification. Streamlight’s range frequently publishes rechargeable options, which is where this model has no answer at all.
Within the same brand, the comparison runs to smaller bodies, since the Nightstick TCM-10 at a rated 650 lumens trades output for an envelope that suits compact frames. Smaller again, the Streamlight TLR-6 HL built for compact pistol frames gives up most of the output in exchange for a footprint that suits subcompact hosts.
Practical Fit and Owner Feedback
Published owner feedback tracks the specification closely. The switch layout and the beam pattern are the two attributes mentioned most often in positive terms, with the defined halo around the centre spot cited as the reason the beam works in confined spaces as well as at distance. The recurring criticisms are runtime and the absence of rechargeable support, both of which follow directly from the CR123 primary cell format.
The fit is a buyer who wants a rail mounted light with ambidextrous switching, a sealed aluminum housing and a beam that reaches, and who accepts primary lithium cells and a two switch mode routine. Buyers who want rechargeable power, a simpler interface or a smaller envelope will find better matches elsewhere in the tactical flashlight and weapon light category.
Specification Summary
- 1200 lumen output with a published 194 meter beam distance
- Ambidextrous single motion switches for momentary and constant on
- IPX7 sealing in a 6061-T6 aluminum housing with a polymer battery door
- Two CR123 primary cells included, with about 1.75 hours at high output
